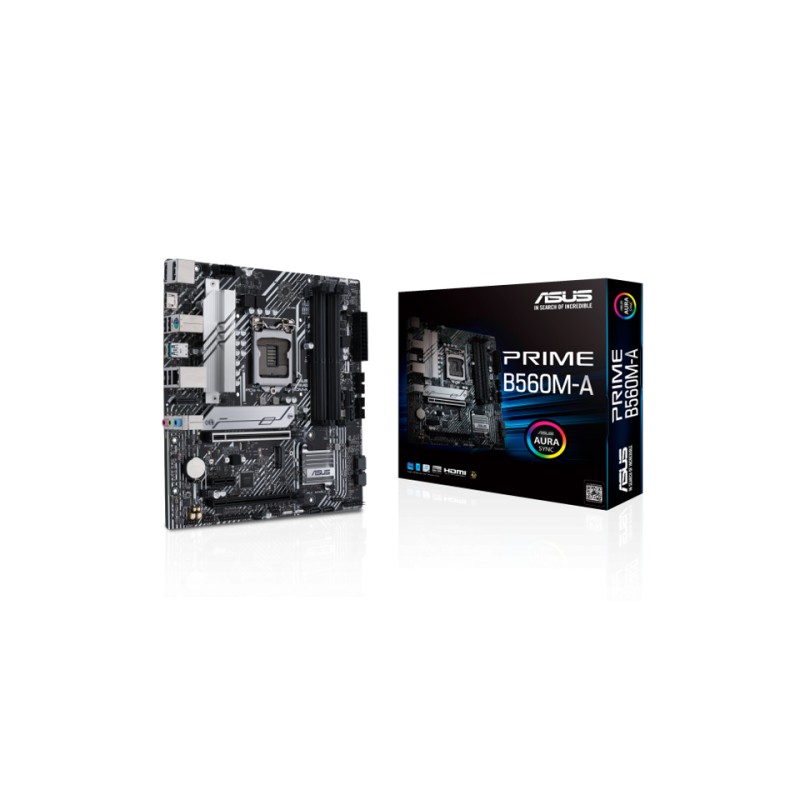

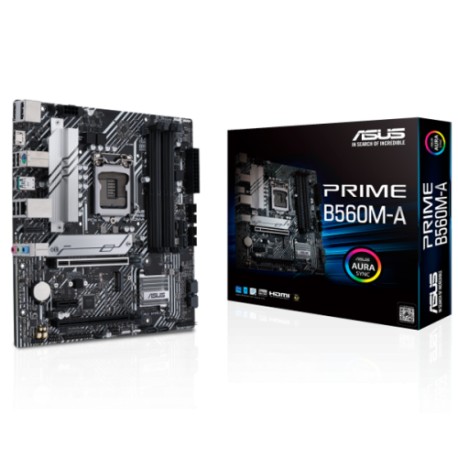

CPUIntel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetB560MemoriaMemory Channels: 4DDR4 (Dual channel)Max Memory Size: 128GBDDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.Gráficos1 x DisplayPort 1.4**2 x HDMI 2.0* Graphics specifications may vary between CPU types.** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.Ranuras de expansiónIntel® 11th &10th Gen Processors1 x PCIe 4.0/3.0 x16 slot(s)*- Intel® 11th Gen processors support PCIe 4.0 x16- Intel®10th Gen processors support PCIe 3.0 x16Intel® B560 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)*1 x PCIe 3.0 x1 slots* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.AlmacenamientoSupports 2 x M.2 slots and 6 x SATA 6Gb/s portsIntel®11th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUsIntel® B560 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*6 x SATA 6Gb/s ports* M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled.USBRear USB:Total 6 ports2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®)4 x USB 2.0 port(s) (4 x Type-A) Front USB:Total 7 ports2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 portsAudioALC887/897- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback"Audio Features- Audio Shielding- Premium Japanese audio capacitors- Dedicated audio PCB layers** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Puertos E/S traseros2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®)4 x USB 2.0 port(s) (4 x Type-A)1 x DisplayPort2 x HDMI™ port1 x Intel® I219-V 1Gb Ethernet port1 x V-M.2 slot (Key E)3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo portPuertos internosFan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)2 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 portsMiscellaneous2 x AURA Addressable Gen 2 header(s)2 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude functionFunciones especiales de ASUSASUS 5X PROTECTION III- DIGI+ VRM- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designAURA Sync- AURA RGB header(s)- Addressable Gen 2 RGB header(s)SoftwareASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS128 Mb Flash ROM, UEFI AMI BIOSManejabilidadWOL by PME, PXEAccesoriosCables2 x SATA 6Gb/s cablesMiscellaneous1 x M.2 Rubber Package(s)1 x M.2 SSD screw package(s)1 x Vertical M.2 Key E bracket setInstallation Media1 x Support DVDDocumentation1 x User manualFactor de forma24.4cm x 23.4cm
