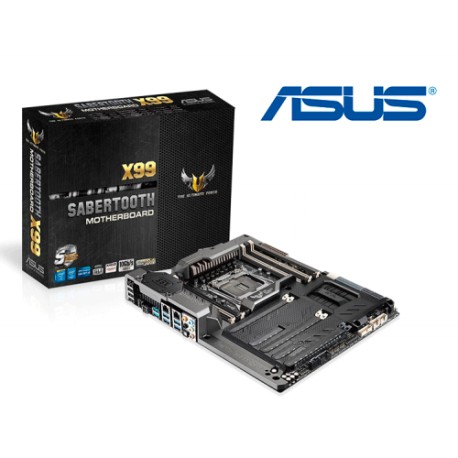

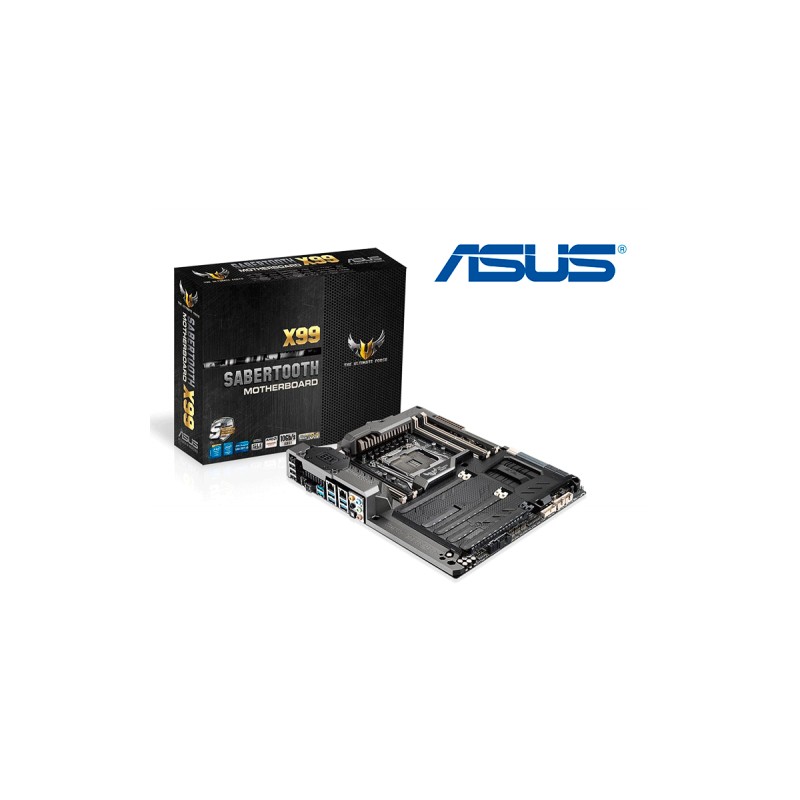

MOTHERBOARD ASUS SABERTOOTH X99

ModeloSABERTOOTH X99CPUIntel® Socket 2011-v3 Core™ i7 Processors Supports Intel® 22 nm CPUSupports Intel® Turbo Boost Technology 2.0 Socket2011-v3ChipsetIntel® X99Memoria8 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered MemoryTarjeta Gráfica AudioRealtek® ALC1150 8-Channel High Definition Audio CODEC Audio Feature :- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound- Optical S/PDIF out port(s) at back panel- BD Audio Layer Content Protection- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Audio amplifier: Provides the highest-quality sound for headphone and speakers- Unique de-pop circuit: Reduces start-up popping noise to audio outputs- Top notch audio sensation delivers according to the audio configuration- Absolute Pitch 192khz/24bit true BD lossless soundSeparate layer for left and right track, ensuring both sound deliver equal qualityLANIntel® I218V, 1 x Gigabit LAN Controller(s)Realtek® 8111GR, 1 x Gigabit LANGigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) applianceASUS Turbo LAN UtilityPuertos de expansión   40-Lane CPU-3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *128-Lane CPU-3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *11 x PCIe 2.0 x4 (x2 mode) 1 x PCIe 2.0 x1Soporte Multi-GPUSupports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ TechnologyAlmacenamientoNew Intel® Core™ i7 Processors : 1 x M.2 Socket 3, graywith M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)Intel® X99 chipset : 1 x SATA Express portcompatible with 2 x SATA 6.0 Gb/s ports8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10USBIntel® X99 chipset : 8 x USB 3.0 port(s) (4 at back panel, , 4 at mid-board)Intel® X99 chipset : 8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)ASMedia® USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, +teal blue)Conectores I/OInternos  1 x AAFP connector2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports1 x TPM header1 x COM port(s) connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)1 x CPU fan with PWM control4 x Chassis Fan connector(s) (4 x 4 -pin)5 x Assistant Fan connector(s) (5 x 4 -pin)1 x S/PDIF out header(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x System panel(s) (Q-Connector)1 x Chassis Intrusion connector(s)1 x MemOK! button(s)3 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)Puertos posteriores2 x LAN (RJ45) port(s)2 x USB 3.1 (teal blue)4 x USB 3.0 (blue) 4 x USB 2.0 1 x Optical S/PDIF out5 x Audio jack(s)1 x USB BIOS Flashback Button(s)Factor de formaATX   30.5 cm x 24.4 cm
