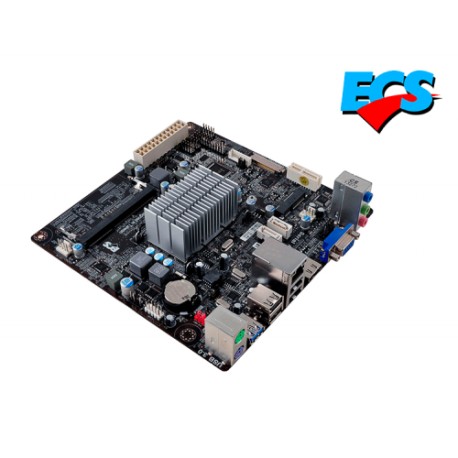

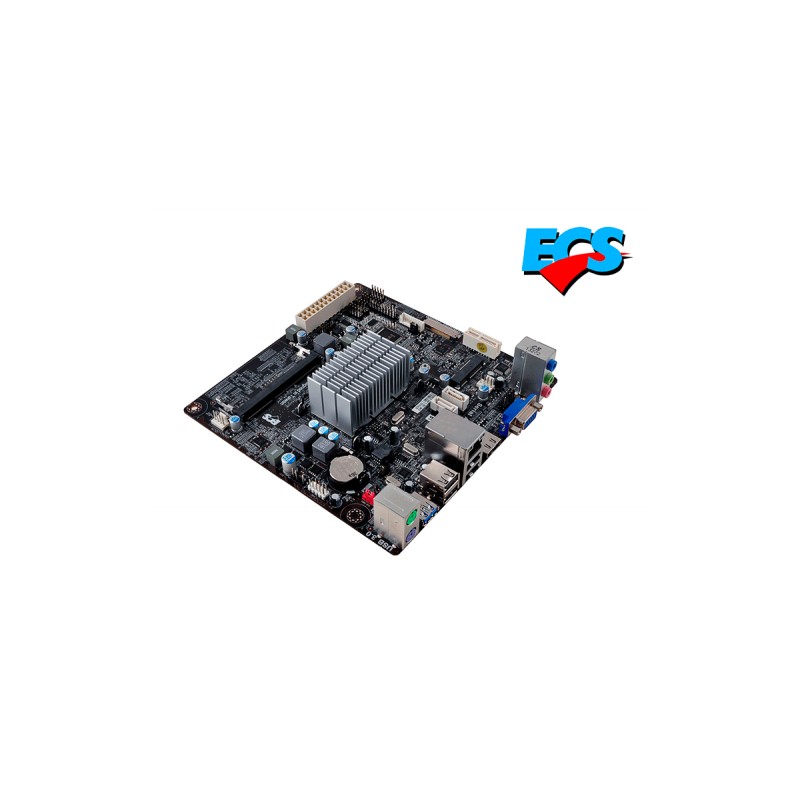

MOTHERBOARD ECS INTEL BAT-I/J1800

CPUº Onboard Intel® Bay Trail processorsº On-Board CPU SelectionsIntel ® Bay Trail J1800 processor.Intel ® Bay Trail J1900 processor.Intel ® Bay Trail J2900 processor.º VRD 12.0º Solid Capacitor for CPU sideº Supports Intel® Hyper-Threading TechnologyGRAPHICSº Supports DirectX® 11º Supports Full HD 1080P Blu-ray / HD-DVD PlaybackMEMORYº Single-channel DDR3 SO-DIMM Memory architecture º 1 X DDR3 SO-DIMM socketº Support up to 8 GB*EXPANSION SLOTº 1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modulesStorageº 2 X Serial ATAII 3Gb/sAudioº 6-Channel HD audio CODECº VIA VT1705 6-channel High Definition audio CODECº BluRay DVD/HD DVD supportLANº Realtek RTL8111G Gigabit Fast Ethernet Controllerº (Realtek RTL8106E 10/100Mbps Fast Ethernet Controller optional)USBº 1 X USB3.0 port(s) up to 5Gb/s      Back Panel 1 port(s)    • 6 X USB2.0 port(s) Up to 480 Mb/s      Back Panel 4 port(s)      Onboard 2 port(s)REAR PANEL I/Oº 1 X PS/2 Keyboard & PS/2 mouse connectorsº 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 portº 1 X HDMI port(s)º 1 X D-Sub (VGA) port(s)º 1 X USB3.0 port(s)º 4 X USB2.0 port(s)CONNECTORS & HEADERSº 1 X 4-pin CPU_FAN connector with smart fanº 1 X 4-pin SYS_FAN connector with smart fanº 1 X Front Panel MIC/Speaker out headerº 1 X Front Panel switch/LED headerº 1 X USB 2.0 header    • Support additional 2 USB portsº 2 X SATA II 3Gb/s connector(s)º 1 X CLR_CMOS headerº 2 X Serial port header (COM) º 1 X Parallel port header (LPT)º 1 X LVDS connector (optional)SYSTEM BIOSº AMI BIOS with 8 MB SPI Flash ROMº Supports ACPI 5.0 & DMIº Dual Displayº Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Bootº Multi-Language BIOSº Audio, LAN, can be disabled in BIOSº Dual-Monitor functionFORM FACTORº Mini ITX Form Factorº 170 mm x 170 mmOS Supportº Windows 7 64-bitº Windows 8 64-bitCertificationsº CE/FCC Certificationº ErP/EuP Certification º WHQL Certification º WHCK CertificationBundled Softwareº Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
