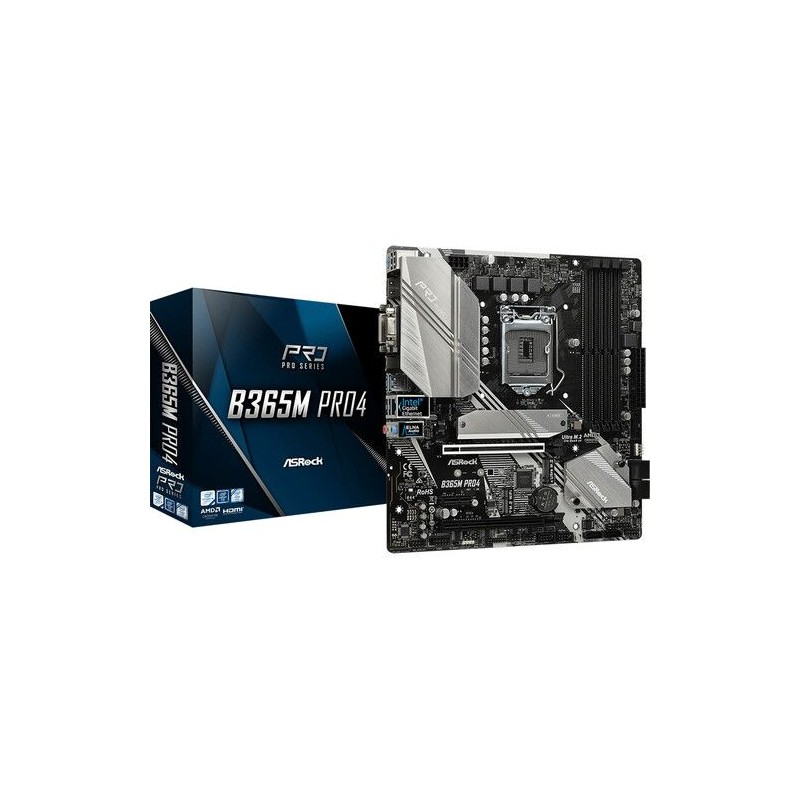

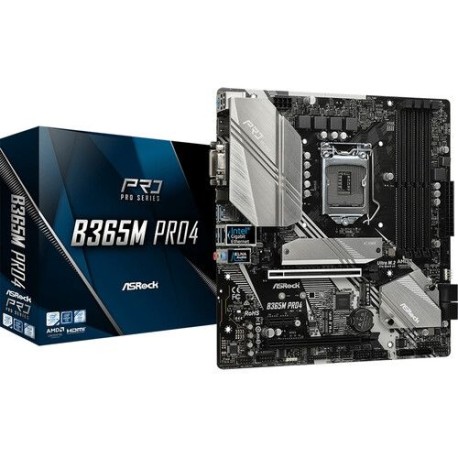

TARJETA MADRE ASROCK B365M Pro4 DDR4 HDMI VGA DVI SOC 1151

Unique FeatureASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Steel SlotASRock Full Coverage M.2 HeatsinkASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for USB, Audio, LAN Ports)ASRock Live Update & APP ShopCPU- Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)- Supports CPU up to 95W- Digi Power design- 8 Power Phase design- Supports Intel® Turbo Boost 2.0 TechnologyChipset- Intel® B365Memory- Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustmentGraphics- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*- Premium Blu-ray Audio support- Supports Surge Protection- ELNA Audio Caps*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.LAN- Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXESlots- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*- 1 x PCI Express 3.0 x1 Slot (Flexible PCIe)- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module*Supports NVMe SSD as boot disksStorage- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.**Supports Intel® Optane™ TechnologySupports NVMe SSD as boot disksSupports ASRock U.2 KitConnector- 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion and Speaker Header- 2 x RGB LED Headers*- 1 x Addressable LED Header**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip**Supports in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 2 x USB 2.0 Ports- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFISoftware- ASRock A-Tuning- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarAccessories- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 SocketHardware Monitor- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCSA, VCCSTForm Factor- Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm- Solid Capacitor designOS- Microsoft® Windows® 10 64-bitCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
